Features
Rugged Brass Piston provides increased safety and reliability at high delivery pressures. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of sensor O-ring failure. Standard Threaded Bonnet (with optional collar mount nuts) permits panel mounting. Ultrasonic Cleaning allows high-purity gas handling without costly pre-cleaning.
-
Specifications

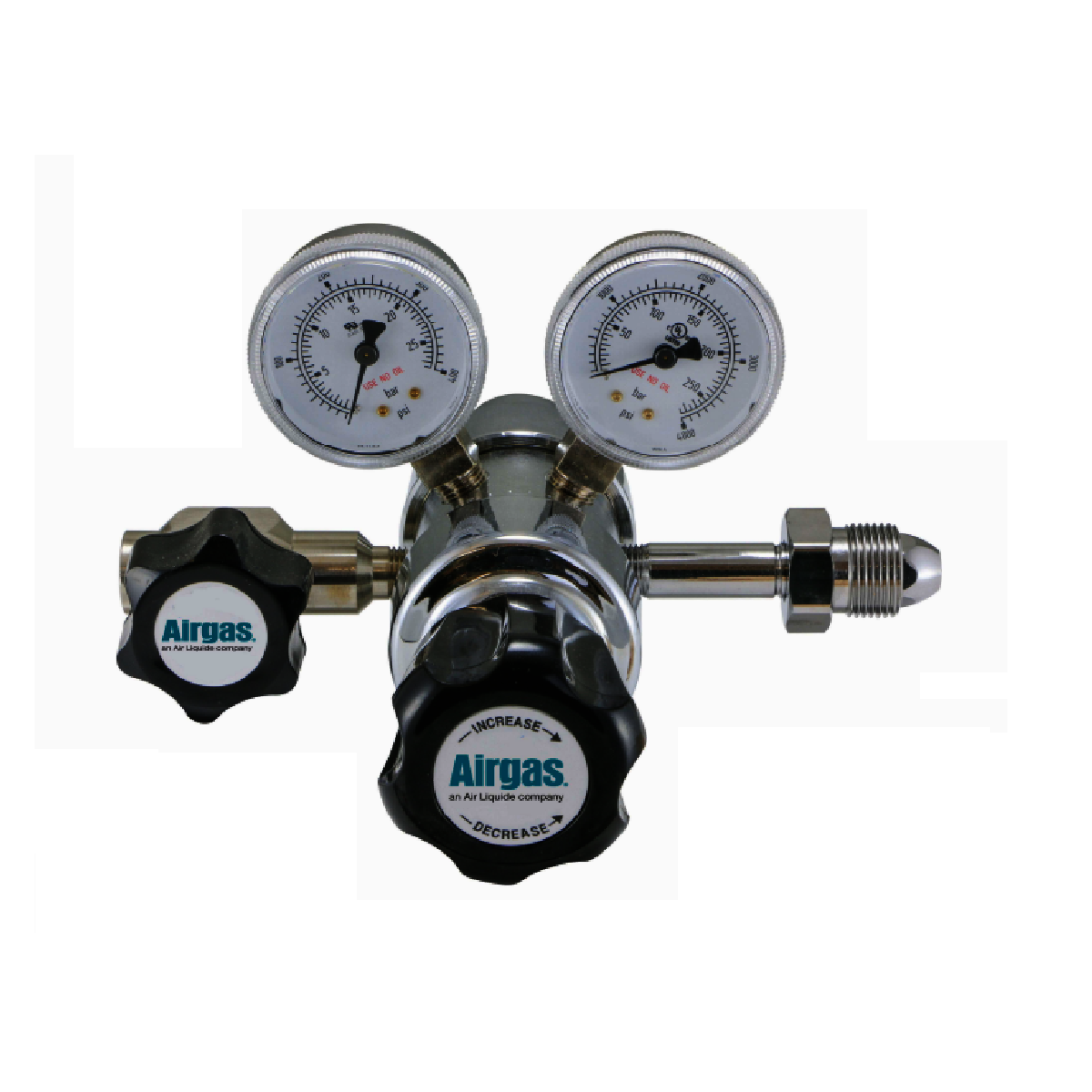

Model
» N115H590
Usage
» High Delivery Pressure
Material
» Brass
Regulator Type
» Single Stage Regulator
» High Delivery Regulator
Inlet Connection
» 1/4" FNPT
Outlet Connection
» 1/4" MNPT Instrument Valve
Max Outlet Pressure
» 2500 psig
Gauge Diameter
» 2 1/2"
-
Product Attributes
Designed for a wide range of pressure settings, these single-stage regulators are recommended for use in petroleum field applications, research laboratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure testing applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 25-micron inlet filter protects internal components.
