Features
Compact Design: Ideal for lecture bottles and small cylinders.
Sensitive Diaphragm: Provides accurate pressure settings.
1 1/2" Gauges: Permit easy reading.
Large Adjusting Knob: Provides excellent sensitivity over a wide range of settings.
Needle Valve: Provides easy control of flow volume.
-
Specifications
Maximum Inlet Pressure: 3,000 psig
Outlet Pressure Range: 0 - 100 psig
Capacity (scfh @ Max Del. Pressure): 250
Relief Valve Setting: 250
Inlet Gauge Range: 0 - 3,000 psig
Delivery Gauge Range: 0 - 100 psig
Flow Capacity: Cv= 0.08
Ambient Operating Temperature: -40° F to +165° F
Designed Leak Rate: Bubble-Tight (helium)
Weight: 1.5 lbs
Ports: 1/8" FNPT
Decay Inlet Characteristic: 0.58/100 psi
-
Product Attributes

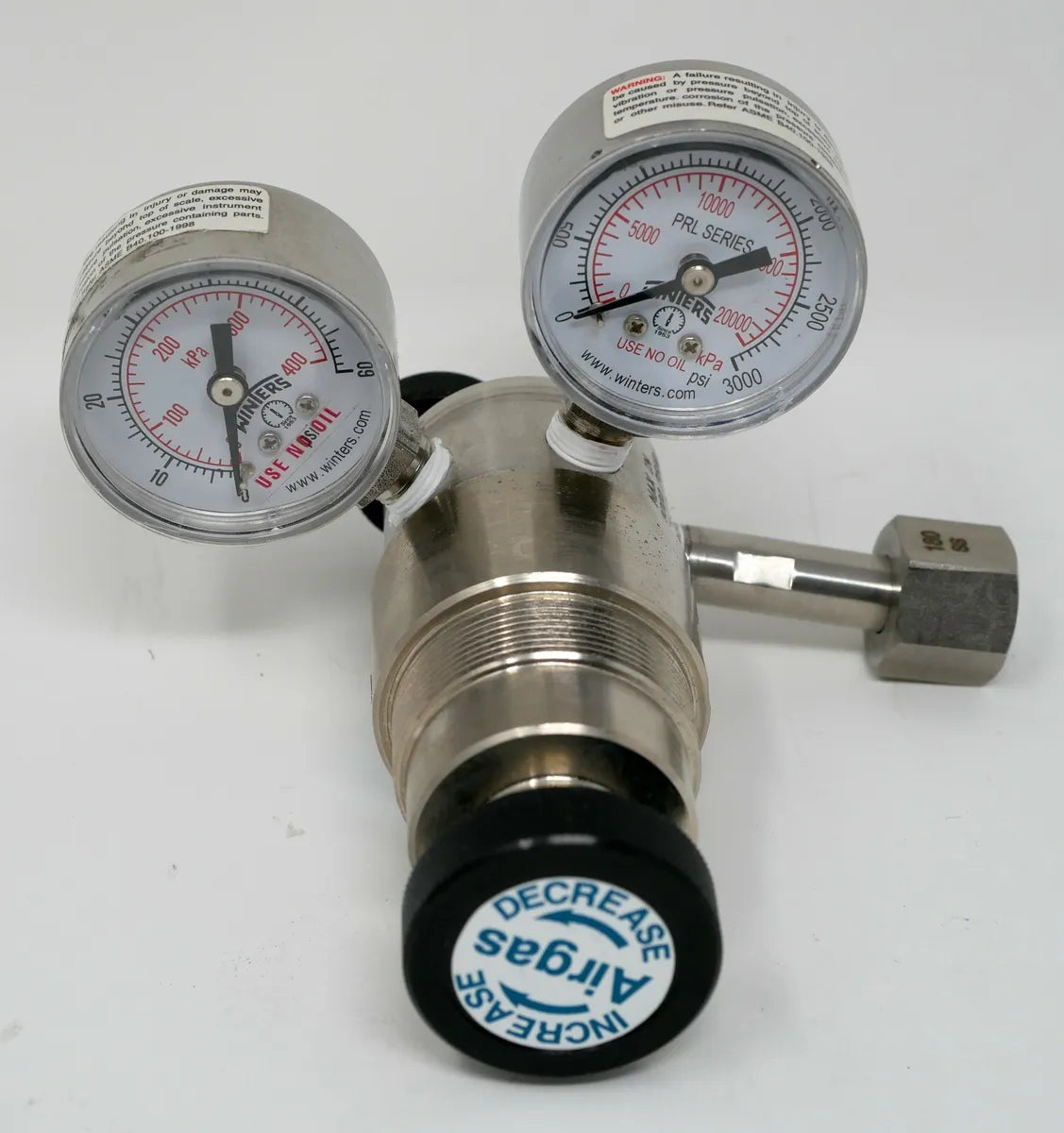

These compact, two-stage analytical series and high-purity stainless steel regulators are ideally suited for lecture bottles and other small cylinders. They are equipped with a CGA-180 connection for easy attachment to Airgas® lecture bottles. Other CGA-connections are available upon request, as the regulator is rated for 3,000 psig inlet pressure. This regulator also features a non-lubricated needle valve, designed to regulate outlet flow. Choose a brass model for analytical or non-corrosive service or a stainless steel model for mildly corrosive service. If used in corrosive service, a cross-purge assembly must be used.
