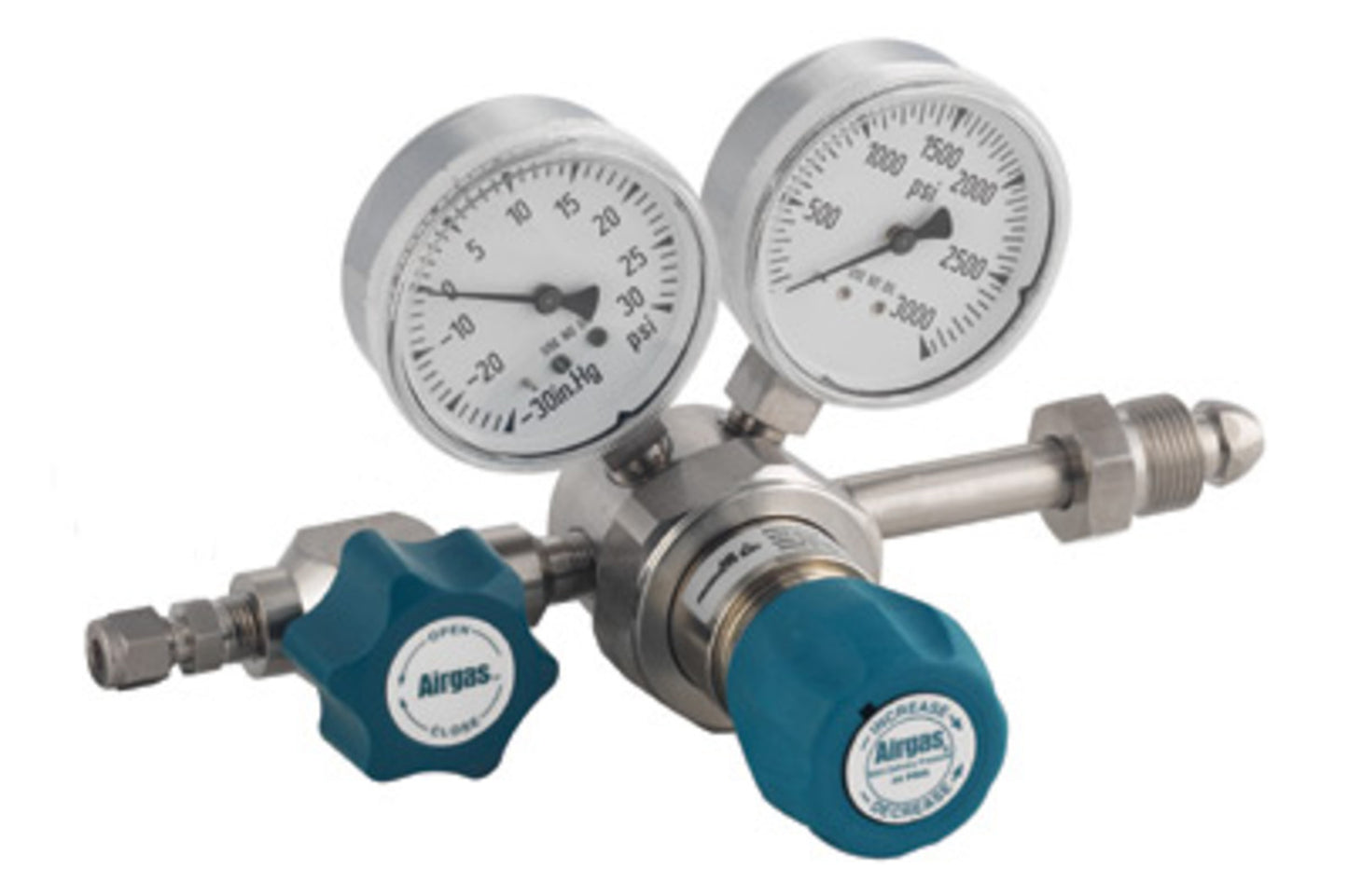

Airgas Model C444D705 Stainless Steel High Purity Single Stage Pressure Regulator With 1/4" FNPT Connection And Threadless Seat

Airgas Model C444D705 Stainless Steel High Purity Single Stage Pressure Regulator With 1/4" FNPT Connection And Threadless Seat

Regular price $959.00 USD
Regular price Sale price $959.00 USD
Sale Sold out
Shipping calculated at checkout.

These 316 stainless steel single-stage high-purity regulators are recommended for non-corrosive analytical, mildly corrosive and process applications where precise flow control is not critical. A specially designed, convoluted Hastelloy C-22 diaphragm provides good regulating performance and maximum purity integrity without the need for a soft seal, which often can be a source of contamination. Each regulator is capable of withstanding an internal vacuum and is provided with a diffusion-resistant, diaphragm packless outlet valve to maintain system purity. The optional bonnet vent adapter enables venting hazardous gases in the event of diaphragm failure.

View full details
  • Features
    Convoluted Hastelloy C-22 Diaphragms provide superior leak integrity without contamination from a non-metallic liner or seal. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of diaphragm failure. Standard Threaded Bonnet (with optional collar-mount nuts) for easy panel mounting. High-Flow Capacity permits excellent pressure control for multi-instrument applications. Threadless Seat Design provides longer regulator life.
  • Specifications
    Model » C444D705 Usage » High Purity Material » Stainless Steel Regulator Type » Single Stage Regulator Inlet Connection » 1/4" FNPT Outlet Connection » 1/4" FNPT Max Outlet Pressure » 100 psig Gauge Diameter » 2 1/2"
  • Product Attributes
    These 316 stainless steel single-stage high-purity regulators are recommended for non-corrosive analytical, mildly corrosive and process applications where precise flow control is not critical. A specially designed, convoluted Hastelloy C-22 diaphragm provides good regulating performance and maximum purity integrity without the need for a soft seal, which often can be a source of contamination. Each regulator is capable of withstanding an internal vacuum and is provided with a diffusion-resistant, diaphragm packless outlet valve to maintain system purity. The optional bonnet vent adapter enables venting hazardous gases in the event of diaphragm failure.
