Features
Convoluted Stainless Steel Diaphragms: Provides superior leak integrity without contamination from a non-metallic liner or seal.
Low Internal Volume: Allows rapid purging and stabilization of gas flow.
Low-Flow Design: Provides precise pressure and flow control.
Small Size: Enables fast, easy fit up.
-
Specifications
Maximum Inlet Pressure: 3,000 psig
Capacity (scfh @ Max Del. Pressure): 10
Outlet Pressure Range: 0 - 10 psig
Relief Valve Setting: 350 psig
Delivery Gauge Range: 0 - 15 psig
Flow Capacity: Cv= 0.088
Ambient Operating Temperature: -20° F to +140° F
Designed Leak Rate: 1 x10-4 ccs (helium)
Weight: 3 lbs
Ports: (4) 1/8" FNPT and 1/4" FNPT
Decay Inlet Characteristic: 0.026/100 psi
Piston O-Ring: Viton-A®

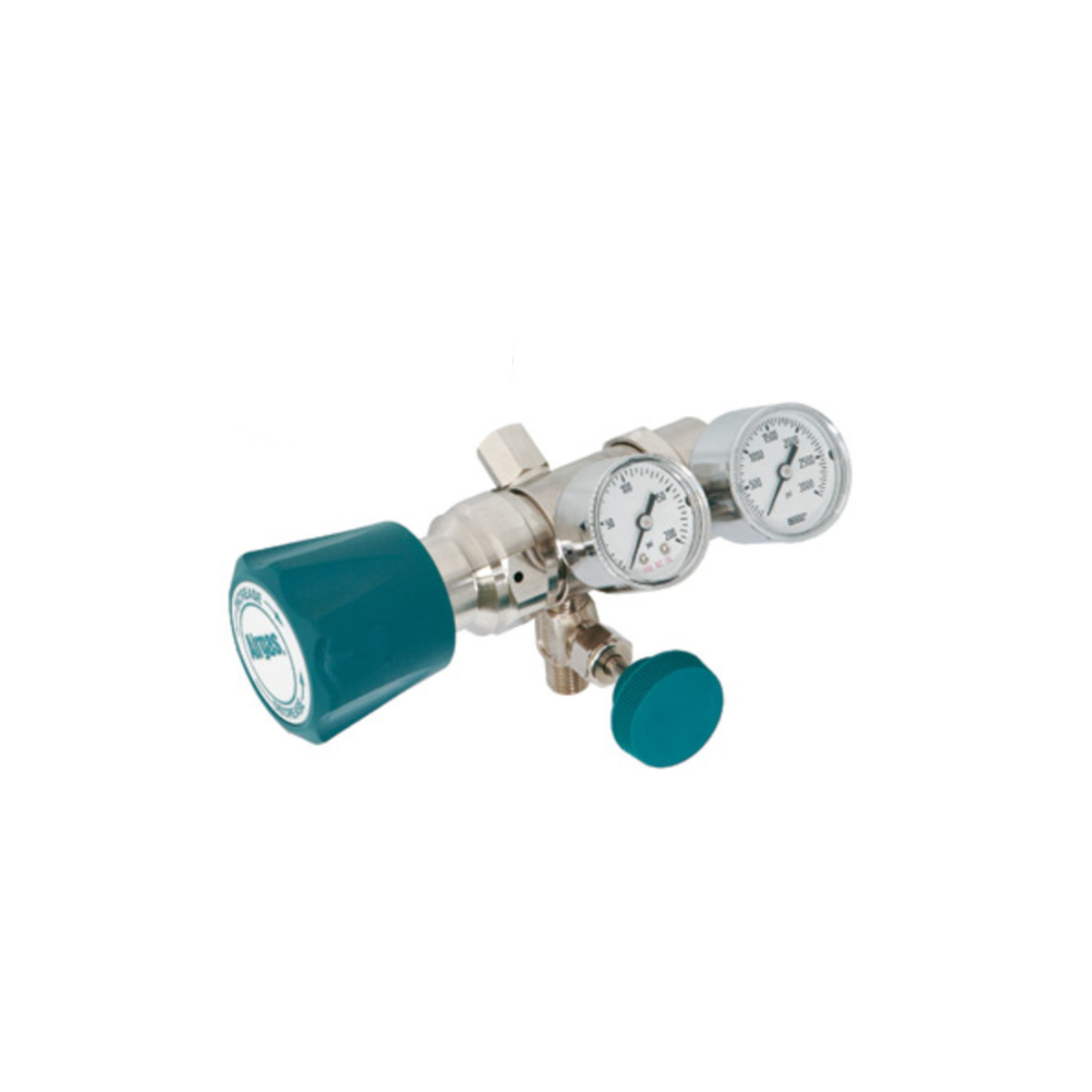

These two-stage regulators are specifically designed for low-flow, non-corrosive gas applications where precise delivery pressure is critical. They feature a brass piston sensor in the first stage, a stainless steel diaphragm in the second stage and a preset safety relief valve. A sintered brass filter protects internal parts. These two-stage regulators are also ideal for medical diagnostic applications, such as blood gas analysis, where precise pressure control and low flow rates are required. They are available with a CGA-cylinder valve connection for use on large cylinders.
-
