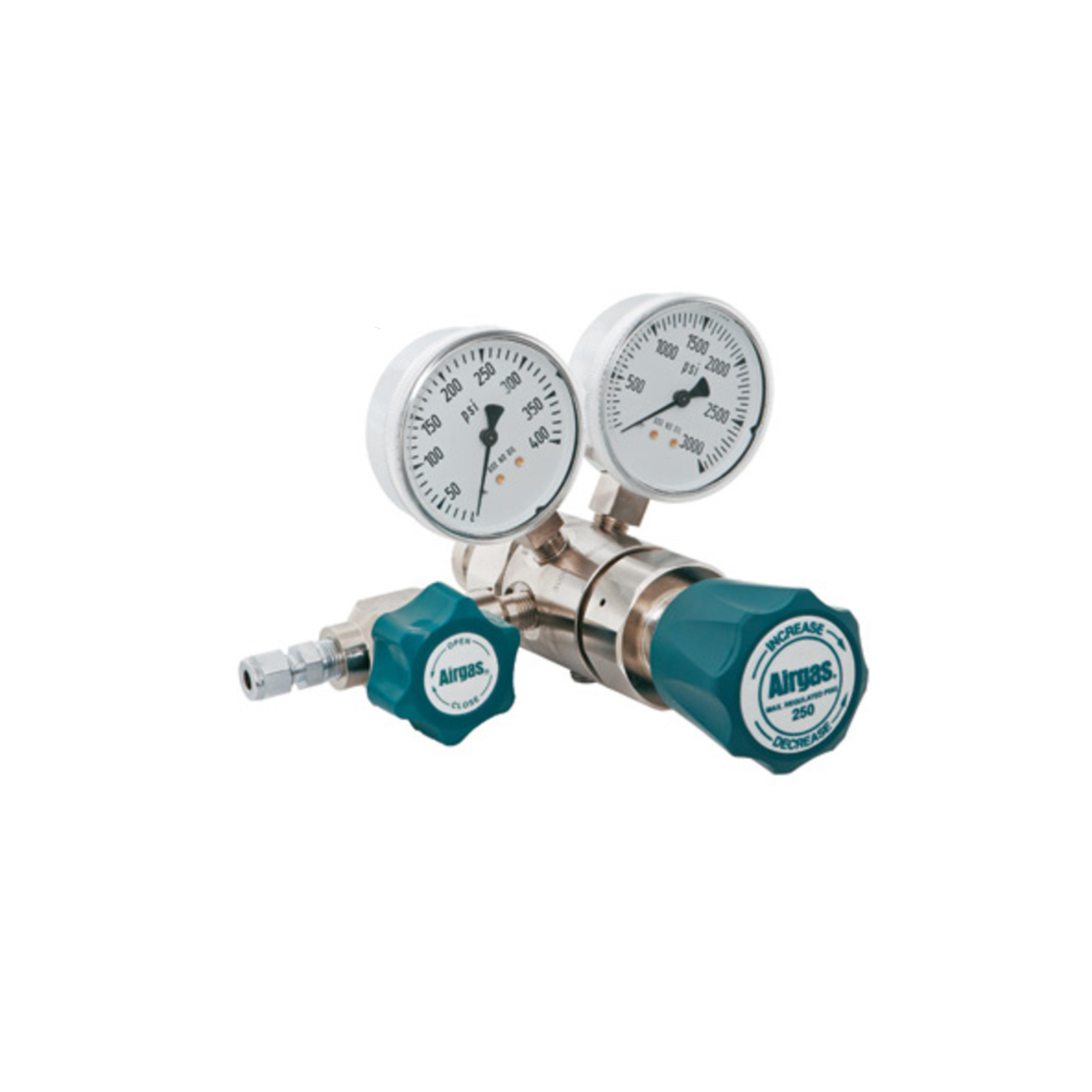

Airgas Model C645D660 Stainless Steel High Purity Two Stage Pressure Regulator With 1/4" FNPT Connection And Threaded Seat

Airgas Model C645D660 Stainless Steel High Purity Two Stage Pressure Regulator With 1/4" FNPT Connection And Threaded Seat

Regular price $1,516.00 USD
Regular price Sale price $1,516.00 USD
Sale Sold out
Shipping calculated at checkout.

This series of two-stage, high-purity 316 stainless steel regulators is designed for non-corrosive analytical and process applications requiring precise, stable delivery pressure control. The two-stage design yields a delivery pressure change of less than 0.04/100 psi inlet change. Convoluted 316 stainless steel diaphragms provide excellent regulating characteristics and corrosion resistance, and the threaded-seat design allows for internal vacuum purging. The metal-to-metal diaphragm seal prevents contamination by eliminating the need for a soft seal and provides a leak-rate design of less than 2 x 10–8ccs helium. This minimizes cleanup time in vacuum purging and yields lower residual contaminant levels. A diaphragm packless outlet valve with a 1/4" compression fitting is provided for flow control and to maintain system purity. Captured bonnet ports with optional vent adapters are standard on both stages and allow the venting of hazardous gases in the event of diaphragm failure. These regulators are ultrasonically cleaned for the most demanding high-purity service.

View full details
  • Features
    Filtered Seat for added gas stream purity and extended service life. Convoluted 316 Stainless Steel Diaphragms provide superior leak integrity without contamination from a non-metallic liner or seal. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of diaphragm failure. Standard Threaded Bonnet (with optional collar-mount nuts) for easy panel mounting. Diaphragm Packless Valve (with 1/4" Compression fitting) promotes system purity. Four Outlet Pressure Ranges provide application pressure compatibility.
  • Specifications
    Maximum Rated Inlet Pressure: 3,000 psig Outlet Pressure Ranges: 0-100 psig Flow Capacity: Cv=0.05 Ambient Operating Temperature: -40° F to +165° F Designed Leak Rate: 2 x10-8ccs (helium) Weight: 4 lbs Ports: ¼" FNPT Delivery Gauge: 0-200 Capacity: 280 scfh @ Max Delivery Pressure Decay Inlet Characteristic: 0.04/100 psi
  • Product Attributes
    This series of two-stage, high-purity 316 stainless steel regulators is designed for non-corrosive analytical and process applications requiring precise, stable delivery pressure control. The two-stage design yields a delivery pressure change of less than 0.04/100 psi inlet change. Convoluted 316 stainless steel diaphragms provide excellent regulating characteristics and corrosion resistance, and the threaded-seat design allows for internal vacuum purging. The metal-to-metal diaphragm seal prevents contamination by eliminating the need for a soft seal and provides a leak-rate design of less than 2 x 10–8ccs helium. This minimizes cleanup time in vacuum purging and yields lower residual contaminant levels. A diaphragm packless outlet valve with a 1/4" compression fitting is provided for flow control and to maintain system purity. Captured bonnet ports with optional vent adapters are standard on both stages and allow the venting of hazardous gases in the event of diaphragm failure. These regulators are ultrasonically cleaned for the most demanding high-purity service.
