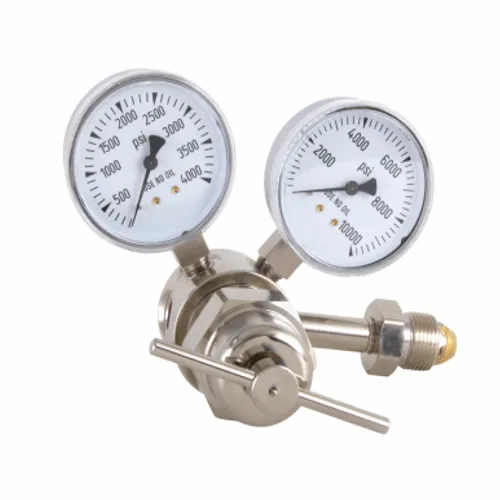

Airgas Model 820J680 Brass Heavy Duty High Pressure Cylinder Regulator With 1/4" FNPT Connection

Name: Airgas Model 820J680 Brass Heavy Duty High Pressure Cylinder Regulator With 1/4" FNPT Connection
Brand: ItsMyLe
Price: 1311.0 USD
Availability: InStock

$1,311.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

This series of Airgas® heavy-duty high pressure cylinder regulators is recommended for use on cylinders or panel mounting with a wide variety of non-corrosive inert gases. This series is ideally suited for high-pressure testing, purging and charging, calibration kits, manufacturing processes and RandD laboratories. The Airgas® heavy-duty high-pressure cylinder regulator’s piston sensor design provides structural reliability in high-pressure applications. The low torque control knob and self-relieving feature permit easy adjustment of pressure in closed or dead-end systems. The 820 Series is configurable for most applications.

View full details

Model

» 820J680

Usage

» Heavy Duty High Pressure

Material

» Brass

Regulator Type

» Cylinder Regulator

Inlet Connection

» 1/4" FNPT

Outlet Connection

» 1/4" FNPT

Max Outlet Pressure

» 4000 psig

Gauge Diameter

» 2 1/2"

Features
Excellent Value high quality and economically priced. Bar Stock Body affords low internal volume. Large Non-corrosive Gauges 2 brass, shatter resistant polycarbonate lenses. Wide Industry Applications including chemical plant, airline charging carts, RandD laboratories.
Specifications
Maximum Inlet Pressure: 6,000 psig Maximum Outlet Pressure: 4,000 psig Capacity: 4,500 scfh @ Max Delivery Pressure Inlet Gauge Range: 0 - 10,000 psig Outlet Gauge Range: 0 - 6,000 psig Outlet Pressure Ranges: 0 - 4,000 Weight: 8 lbs Ports: (4) 1/4" FNPT
Product Attributes
This series of Airgas® heavy-duty high pressure cylinder regulators is recommended for use on cylinders or panel mounting with a wide variety of non-corrosive inert gases. This series is ideally suited for high-pressure testing, purging and charging, calibration kits, manufacturing processes and RandD laboratories. The Airgas® heavy-duty high-pressure cylinder regulator’s piston sensor design provides structural reliability in high-pressure applications. The low torque control knob and self-relieving feature permit easy adjustment of pressure in closed or dead-end systems. The 820 Series is configurable for most applications.
